SIZE GUIDES

CYLINDRICAL FENDERS

Boat Length Cylindrical Fender Model Dimensions Number of Fenders Recommended
(For one side of the boat)
15 - 30 feet
(5 - 9 meters)
C62 Height: 23.5"
Diameter: 8.5"
3
30 - 43 feet
(9 - 17 meters)
C73 Height: 27.5"
Diameter: 10"
4
43 - 52 feet
(16 - 19 meters)
C84 Height: 31.5"
Diameter: 12"
4
52 - 62 feet
(19 - 30 meters)
C104 Height: 39.5"
Diameter: 13.5"
5
62 - 98 feet
(16 - 19 meters)
C124 Height: 47"
Diameter: 14"
6
98 - 131 feet
(30 - 40 meters)
C145 Height: 55"
Diameter: 19"
7
131 - 180 feet
(40 - 55 meters)
C175 Height: 67"
Diameter: 22"
8
180 - 230 feet
(55 - 70 meters)
C207 Height: 79"
Diameter: 27.5"
9
230 - 328 feet
(70 - 100 meters)
C248 Height: 95"
Diameter: 37.5"
10

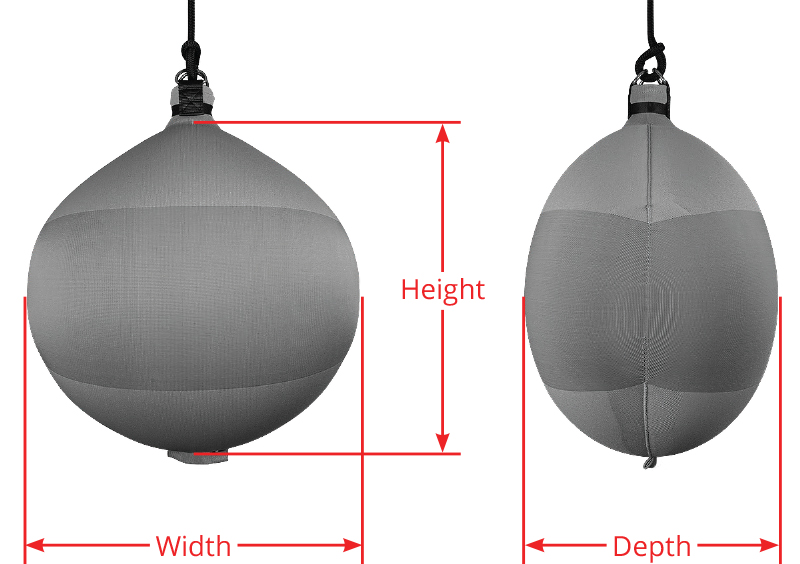

SPHERICAL FENDERS

Spherical Fender Model Dimensions
S60 Depth: 15"
Height: 21"
Width: 21"
S70 Depth: 18"
Height: 24"
Width: 24"
S80 Depth: 21"
Height: 26"
Width: 26"
S100 Depth: 26"
Height: 34"
Width: 34"
S120 Depth: 32"
Height: 42"
Width: 42"

TANDEM FENDERS

Boat Length Tandem Fender Model Dimensions
30 - 43 feet
(9 - 17 meters)
T73 Depth: 5"
Height: 27.5"
Width: 10"
43 - 52 feet
(16 - 19 meters)
T84 Depth: 6"
Height: 31.5"
Width: 12"
52 - 62 feet
(19 - 30 meters)
T104 Depth: 6.5"
Height: 39.5"
Width: 13.5"
62 - 98 feet
(16 - 19 meters)
T124 Depth: 7"
Height: 47"
Width: 14.5"
98 - 131 feet
(30 - 40 meters)
T145 Depth: 9.5"
Height: 55"
Width: 19.5"
131 - 180 feet
(40 - 55 meters)
T175 Depth: 11"
Height: 67"
Width: 22"
180 - 230 feet
(55 - 70 meters)
T207 Depth: 13.5"
Height: 79"
Width: 27.5"
230 - 328 feet
(70 - 100 meters)
T248 Depth: 18.5"
Height: 94.5"
Width: 37.5"
