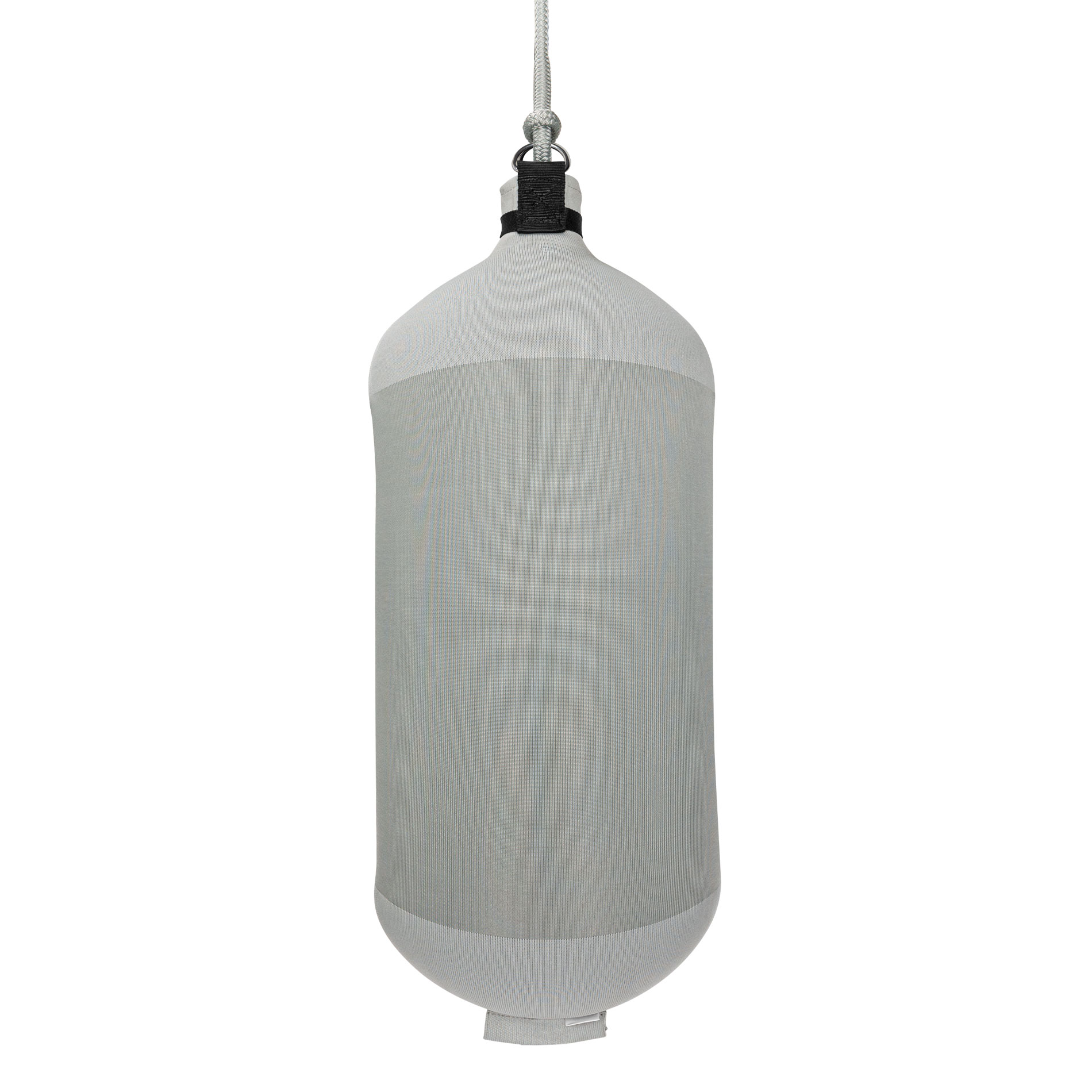

Grey Fendertex cylindrical fender

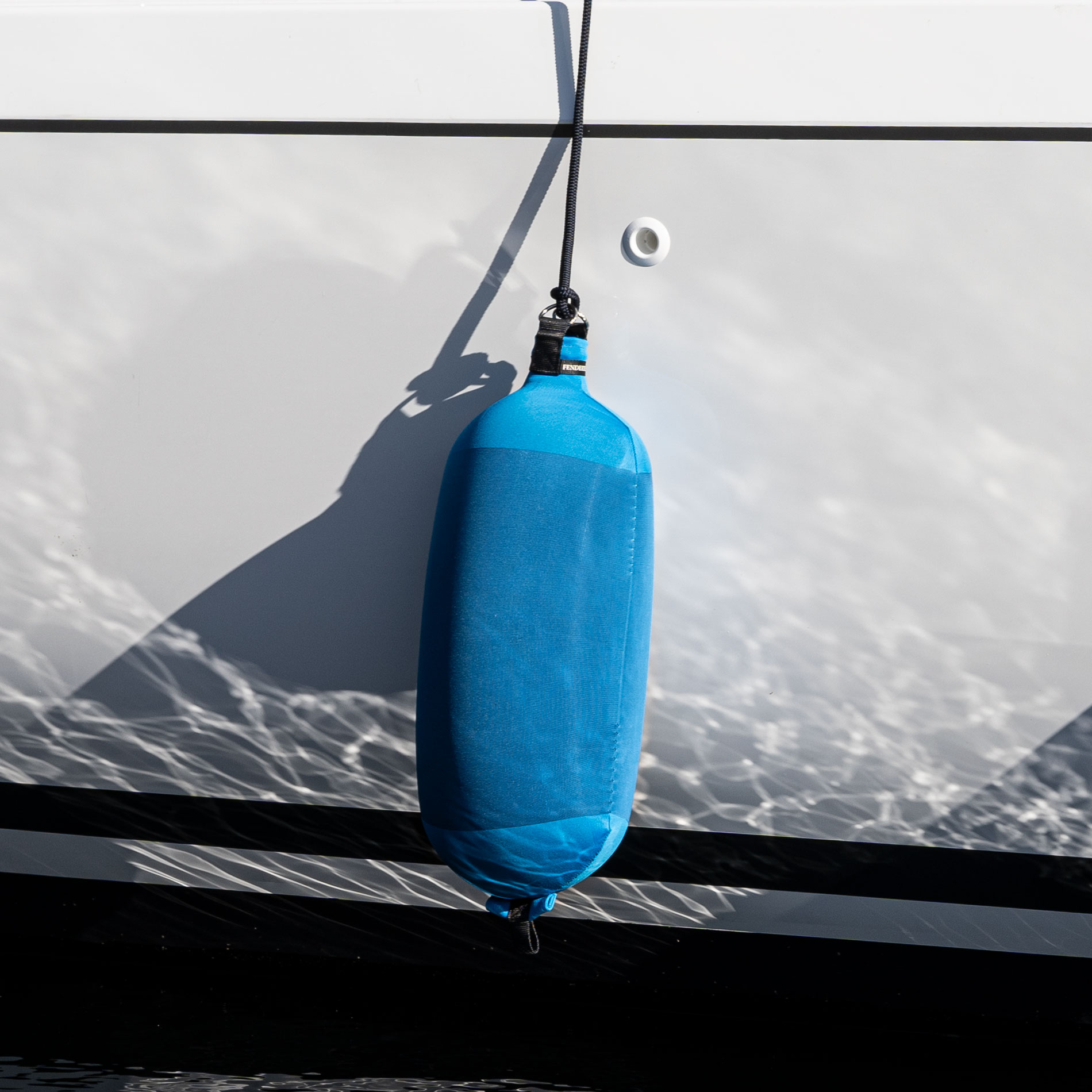

Royal Blue Fendertex cylindrical fender on sailboat
Grey Fendertex cylindrical fender on power boat

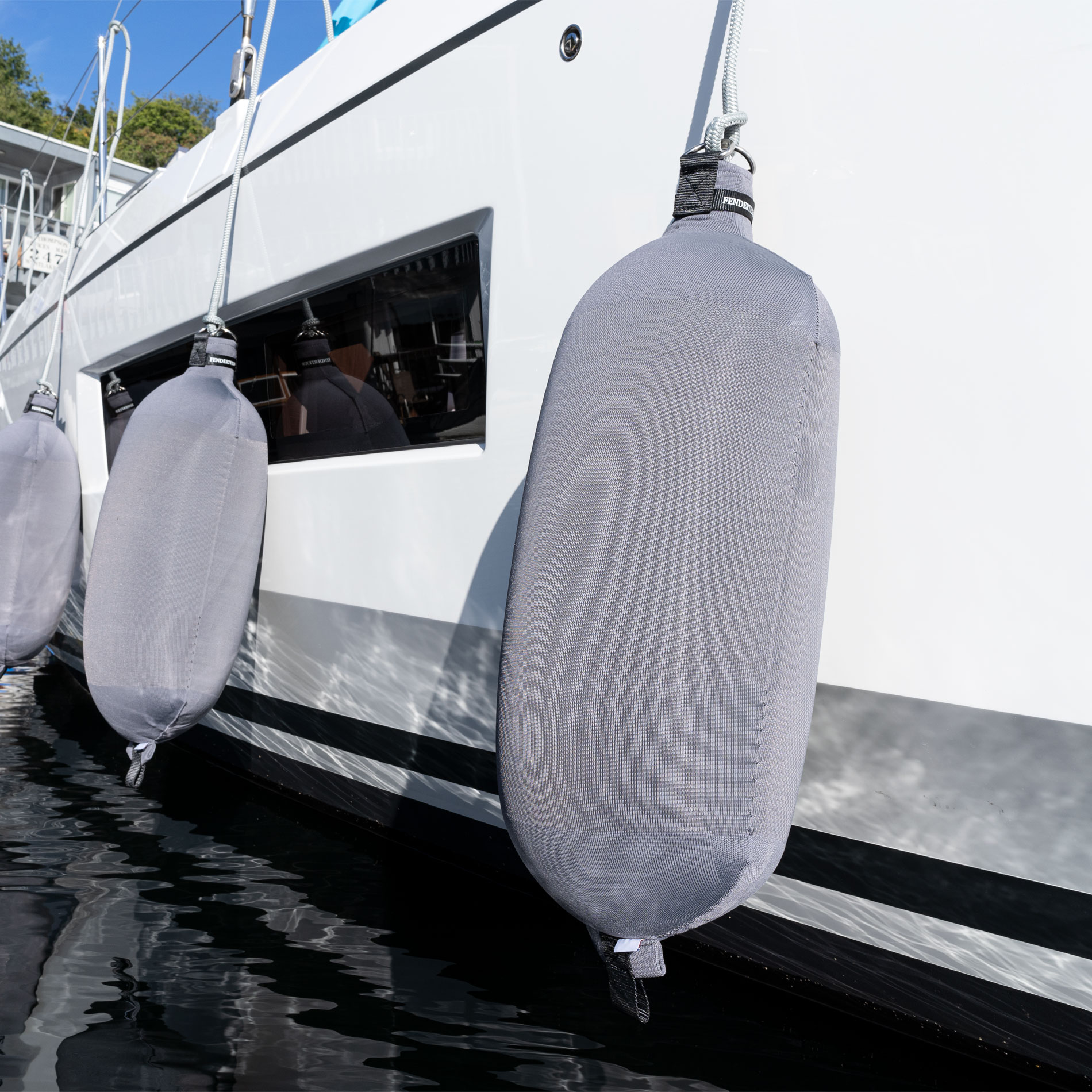

Grey Fendertex cylindrical fender on sailboat
Right arrow

CYLINDRICAL FENDER

Technical Specifications

Size Guide

BUY OR CUSTOMIZE NOW

The Fendertex Cylindrical Fender is our most commonly used fender shape. The fender is knitted using a patented high-tech polyester textile and inflated with an ultrasonically welded polyurethane bladder. The fender offers high abrasion resistance and high compression strength, built with 316 stainless steel d-rings located at the top. Fendertex Cylindrical Fenders are ultralightweight, easy to handle, and can be deflated and rolled to minimize storage space.

All Fendertex Cylindrical Fender textiles are dyed in mass, making them highly resistant to UV degradation and color fading. In addition, the patented salt-resistant material and knitting technique was designed for the megayacht market to limit abrasion on the hull and paint. As a result, Fendertex Fenders material will leave no marks on the outside of the hull.


STOCK COLORS

Due to the many variations in monitors and browsers, color samples may appear different.

Fendertex Black color swatch

Black

Fendertex Dark Gray color swatch

Dark Gray

Fendertex Gray color swatch

Gray

Fendertex Navy Blue color swatch

Navy Blue

Fendertex Royal Blue color swatch

Royal Blue

CUSTOM COLORS

Custom colors are made to order, and have a 4-6 week lead time.

Fendertex Burgundy color swatch

Burgundy

Fendertex Red color swatch

Red

Fendertex Orange color swatch

Orange

Fendertex Yellow color swatch

Yellow

Fendertex Beige color swatch

Beige

Fendertex Green color swatch

Green

Fendertex Lagoon color swatch

Lagoon


TECHNICAL SPECIFICATIONS

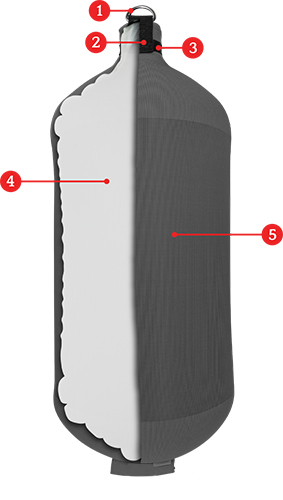

Details of a Fendertex fender
FENDER DETAILS
  1. 316 stainless steel D-ring.
  2. Suspension strap sewn into a cross for added strength.
  3. Retention strap to prevent deformation of the collar during compression.
  4. Highly elastic inflatable inner bladder. Water can be added to act as ballast for the fender.
  5. A technical textile made from polyester with high abrasion resistance. Does not absorb salt, thus avoiding micro scratches on the hull. Easy to clean with water or in a standard washing machine.
TEMPERATURE RESISTANCE
Textile Cover: 284°F (140°C) static / 320°F (160°C) dynamic
Inner Bladder: 293°F (145°C) static / 257°F (125°C) dynamic
FENDER WEIGHT

Reinforced thread has twice the compression strength of the standard thread. Refer to the size guide for compression strengths of each fender.

Fender Model Weight
(Standard Thread)
Weight
(Reinforced Thread)
C62 1.4 lbs / 0.7 kg 1.8 lbs / 0.9kg
C73 1.9 lbs / 0.9 kg 2.5 lbs / 1.2 kg
C84 2.5 lbs / 1.2 kg 3.3 lbs / 1.5 kg
C104 3.0 lbs / 1.4 kg 3.8 lbs / 1.8 kg
C124 4.0 lbs / 1.9 kg 5.0 lbs / 2.3 kg
C145 4.9 lbs / 2.3 kg 5.8 lbs / 2.7 kg
C175 6.0 lbs / 2.8 kg 7.5 lbs / 3.4 kg
C207 N/A 11.5 lbs / 5.3 kg
C248 N/A 18.5 lbs / 8.4 kg

SIZE GUIDE

Boat Length Cylindrical Fender Model Dimensions Compression Strength
(Standard Thread)
Compression Strength
(Reinforced Thread)
Number of Fenders Recommended
(For one side of the boat)
15-30 feet
(5-9 meters)
C62 Height: 23.5"
Diameter: 8.5"
4,000 lbs
(2,000 kg)
8,800 lbs
(4,000 kg)
3
30-43 feet
(9-17 meters)
C73 Height: 27.5"
Diameter: 10"
6,613 lbs
(3,000 kg)
13,226 lbs
(6,000 kg)
4
43-52 feet
(16-19 meters)
C84 Height: 31.5"
Diameter: 12"
10,361 lbs
(4,700 kg)
20,722 lbs
(9,400 kg)
4
52-62 feet
(19-30 meters)
C104 Height: 39.5"
Diameter: 13.5"
13,227 lbs
(6,000 kg)
26,454 lbs
(12,000 kg)
5
62-98 feet
(16-19 meters)
C124 Height: 47"
Diameter: 14"
17,196 lbs
(7,800 kg)
34,392 lbs
(15,600 kg)
6
98-131 feet
(30-40 meters)
C145 Height: 55"
Diameter: 19"
19,841 lbs
(9,000 kg)
39,682 lbs
(18,000 kg)
7
131-180 feet
(40-55 meters)
C175 Height: 67"
Diameter: 22"
26,455 lbs
(12,000 kg)
52,910 lbs
(16,000 kg)
8
180-230 feet
(55-70 meters)
C207 Height: 79"
Diameter: 27.5"
N/A 70,546 lbs
(32,000 kg)
9
230-328 feet
(70-100 meters)
C248 Height: 95"
Diameter: 37.5"
N/A 88,184 lbs
(40,000 kg)
10
Custom Fendertex Fender

CUSTOMIZATION

Fendertex Fenders are highly customizable. You can select from the many options, such as fender cover, covered D-rings, whip, etc. Each of these components can be done in any of the ten colors.

If you select the option to add covers to your fender, you can have your boat name, logo, or any design knitted into the cover. The design can also be done in any of the ten available colors.

BUILD YOUR FENDER
