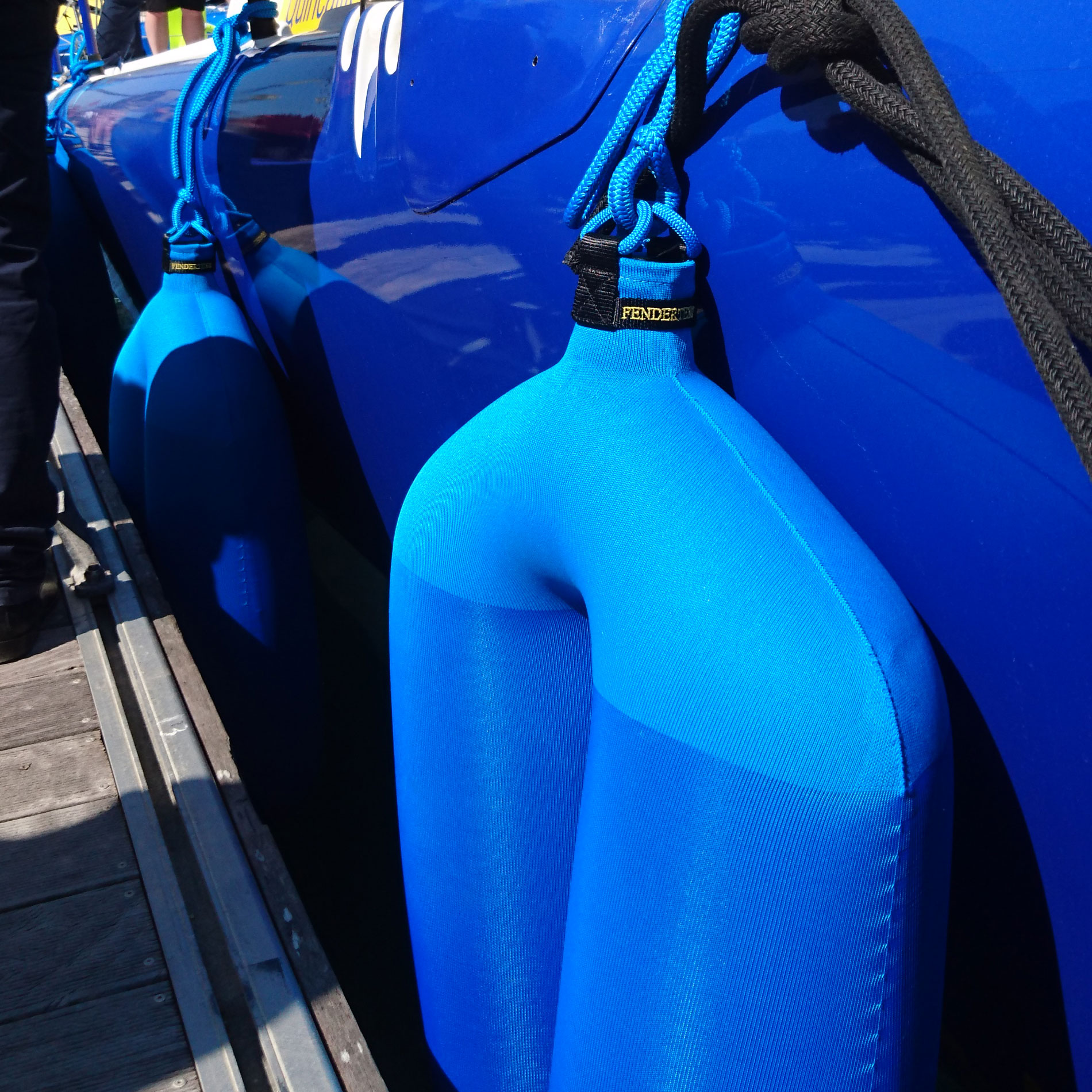

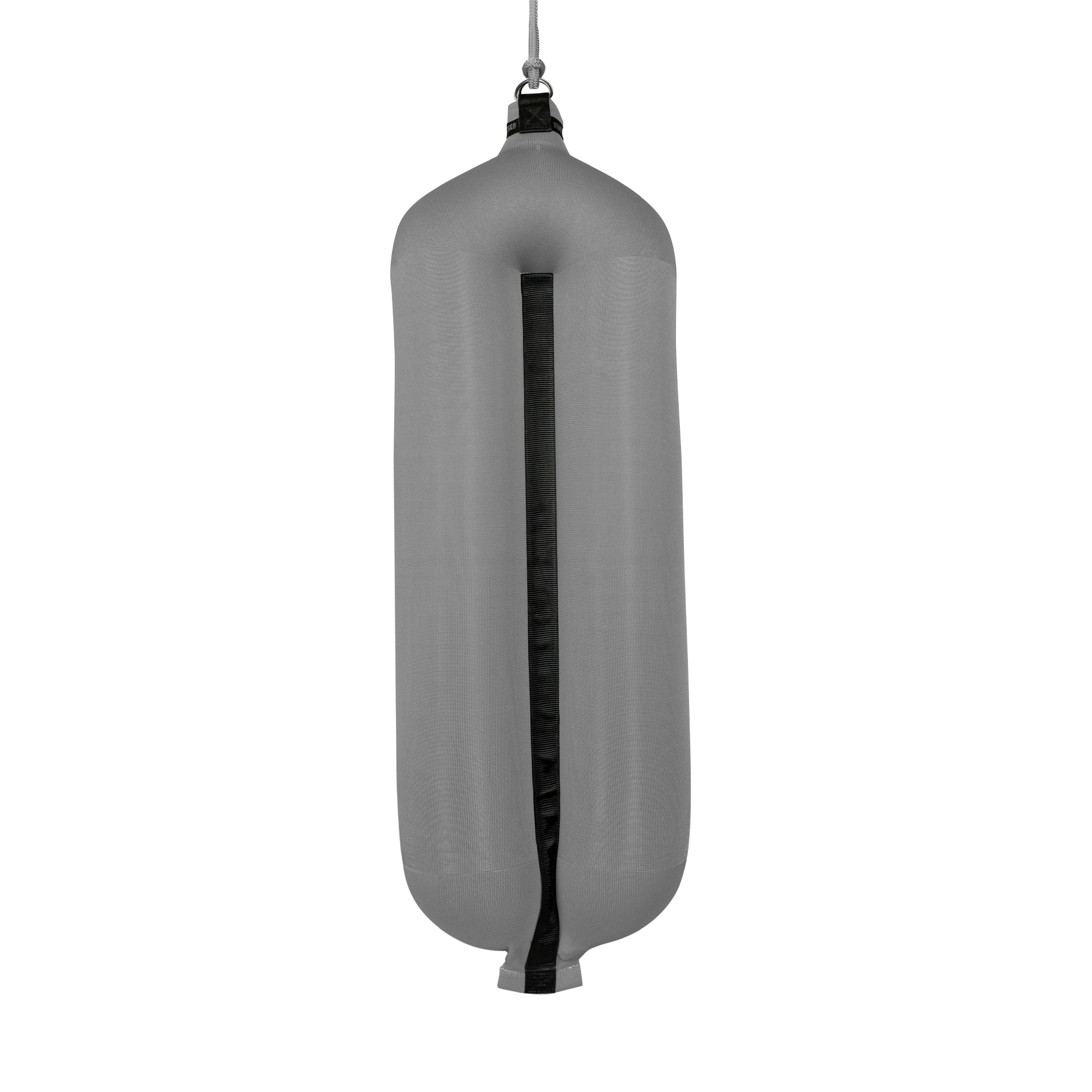

The tandem fender is designed for sailboats, both monohulls and catamarans. It's dual tube design prevents it from rolling on itself and protects a larger area than other shaped fenders. The Fendertex® tandem textile fender offers the highest performance protection. They are ultralightweight, easy to handle and can be deflated and folded to minimize storage space.
All Fendertex® textile fenders are dyed en masse and designed using a patented salt resistant material that leaves no trace or scratch on the hull.
Textile Details:
Inflatable Bladder Details:
Attachment:
Tandem Fender Part # | Dimensions | Weight | Compression Strength |
---|---|---|---|
T52 | Height: 19.68" (500 mm) Diameter: 8.66" (220 mm) |
1.32 lbs (0.6 kg) | 2,204 lbs (1,000 kg) |
T73 | Height: 27.56" (700 mm) Diameter: 9.84" (250 mm) |
1.76 lbs (0.8 kg) | 3,306 lbs (3,000 kg) |
T84 | Height: 31.50" (800 mm) Diameter: 11.81" (300 mm) |
2.43 lbs (1.1 kg) | 5,180 lbs (2,350 kg) |
T104 | Height: 39.37" (1,000 mm) Diameter: 13.39" (340 mm) |
3.53 lbs (1.6 kg) | 6,613 lbs (3,000 kg) |
T124 | Height: 47.24" (1,200 mm) Diameter: 14.17" (360 mm) |
5.07 lbs (2.3 kg) | 8,598 lbs (3,900 kg) |
T145 | Height: 55.12" (1,400 mm) Diameter: 19.29" (490 mm) |
6.17 lbs (2.8 kg) | 9,920 lbs (4,500 kg) |
T175 | Height: 66.93" (1,700 mm) Diameter: 22.05" (560 mm) |
7.72 lbs (3.5 kg) | 13,227 lbs (6,000 kg) |
T207 | Height: 78.74" (2,000 mm) Diameter: 27.56" (700 mm) |
9.92 lbs (4.5 kg) | 17,637 lbs (8,000 kg) |
T248 | Height: 94.49" (2,400 mm) Diameter: 37.40" (950 mm) |
11.68 lbs (5.3 kg) | 22,046 lbs (10,000 kg) |

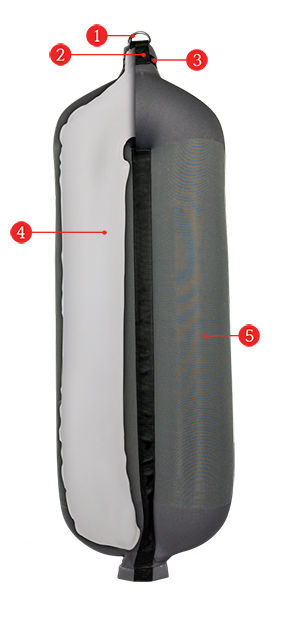

Technical textile with low elasticity at the ends to compensate for the increase in air volume caused by high temperatures maintains a constant pressure of about 5.1 psi (350 mbh)
Long side ring
Highly elastic inner tube, water can be added to act as ballast for the fender
A technical textile made from polyester with high abrasion resistance. Does not absorb salt, thus avoiding micro scratches on the hull. Easy to clean with water or in a standard washing machine.
Retention strap to prevent deformation of the collar during compression
Inflatable suspension collar with a maximum capacity at 1.5 tons of vertical tension
Suspension strap sewn into a cross for added strength
316 stainless steel D-ring
The yarn is dyed en masse for optimal UV resistance.
Boat Length | ![]() Cylindrical Fender Part # |
![]() Spherical Fender Part # |
Number of Fenders Recommended (For both sides of vessel) |
![]() Tandem Fender Part # |
---|---|---|---|---|
23 - 30 feet (7 - 9 meters) |
C52 | - | ![]() |
T52 * |
30 - 43 feet (9 - 13 meters) |
C73 | - | ![]() |
T73 * |
43 - 52 feet (13 - 16 meters) |
C84 | - | ![]() |
T84* |
52 - 62 feet (16 - 19 meters) |
C104 | S60 | ![]() |
T104 * |
62 - 98 feet (19 - 30 meters) |
C124 | S70 | ![]() |
T124 * |
98-131 feet (30 - 40 meters) |
C145 | S80 | ![]() |
T145 * |
131 - 180 feet (40 - 55 meters) |
C175 | S100 | ![]() |
- |
180 - 230 feet (55 - 70 meters) |
C207 | S120 | ![]() |
- |
230 - 328 feet (70 - 100 meters) |
C248 | S120 | ![]() |
- |
* Tandem fenders can be used in place of cylindrical fenders where indicated.
