Floor Anchors

PYI Floor Anchors

PYI Floor Anchors are designed and engineered to secure floorboards or lock hinged panels. Made of 316L stainless steel. Will not corrode, discolor with age or damage the wood surface.
Available for 1/2" to 1-1/4" (12 - 32mm) thick floorboards.

Buy Now

OEM Floor Anchors

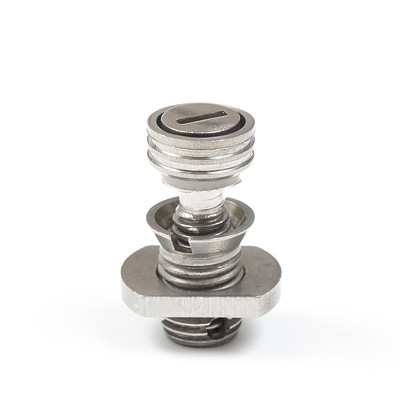

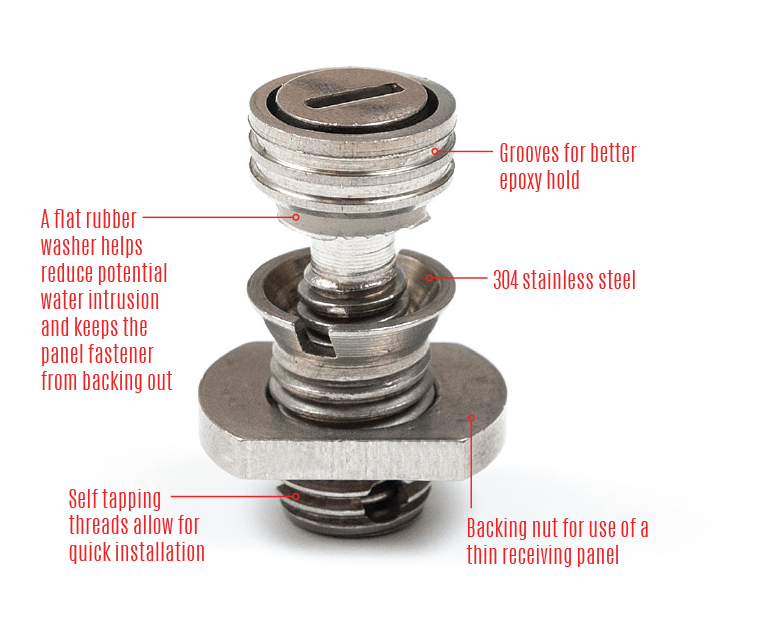

PYI OEM Floor Anchors

PYI "OEM" Floor Anchors are designed to allow a 3/8" (9mm) to 3/4" (19mm) floor panel to be attached and detached repeatedly. PYI "OEM" Floor Anchors are a simplified form of PYI's successful Floor Anchors. Their simple design and installation allows a production boat builder to implement this type of fastener in a manufacturing environment. All components are made of 304 stainless steel.


Floor Anchors

PYI Floor Anchors

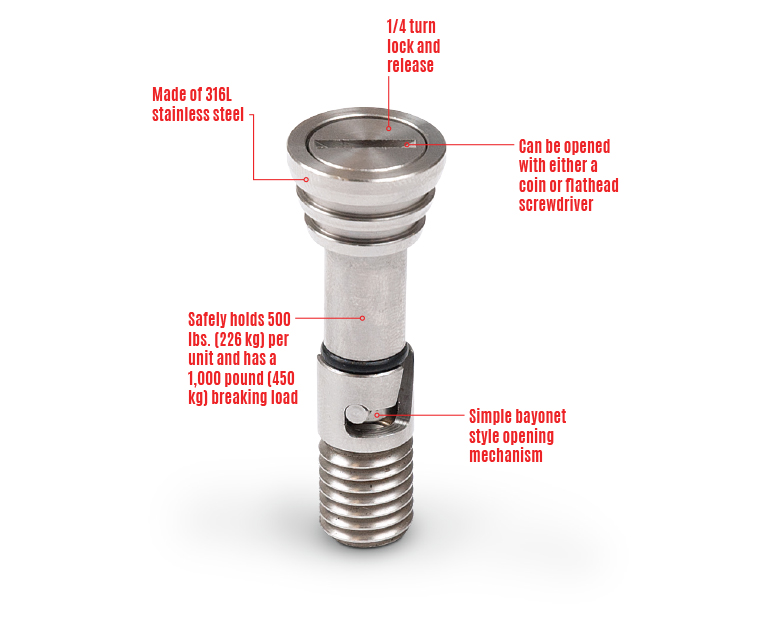

PYI Floor Anchors are available in 316L stainless steel, it will not corrode, discolor with age or damage the wood surface. PYI Floor Anchors meet ISAF requirements for offshore boats (category 2.03) and can safely hold 500 lbs. (226 kg.) per unit. The simple bayonet style opening mechanism, with 1/4 turn lock and release, will not loosen with age. Being that all pieces are self-contained, Floor Anchors can be continuously opened / closed without the fear of losing pieces. Suitable for 0.5" to 1.25" (12mm - 32mm) thick floorboards.

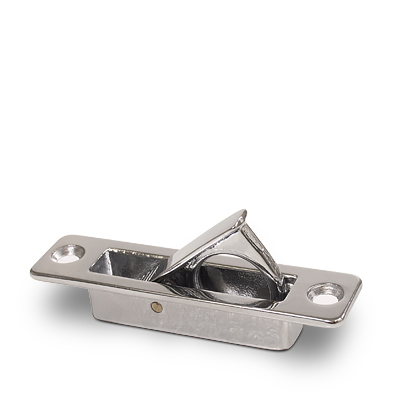

Floor Latch

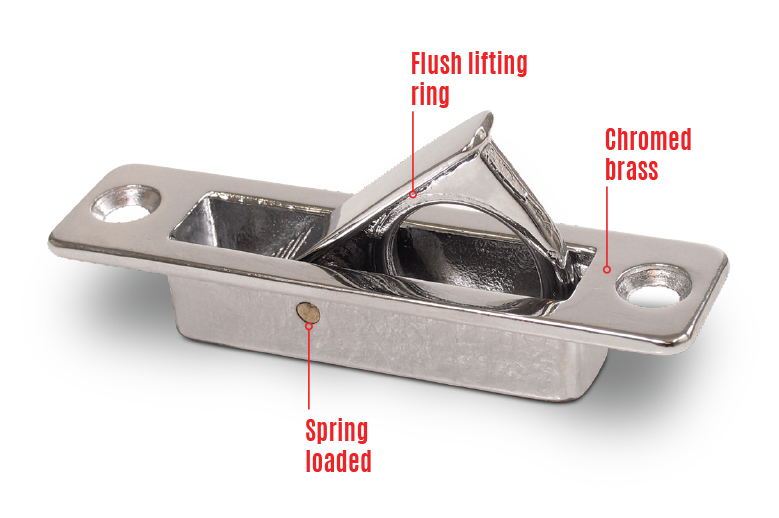

PYI Floor Latch

The PYI Floor Latch is a flush mounted floor latch made of chromed brass with a spring loaded lifting ring.

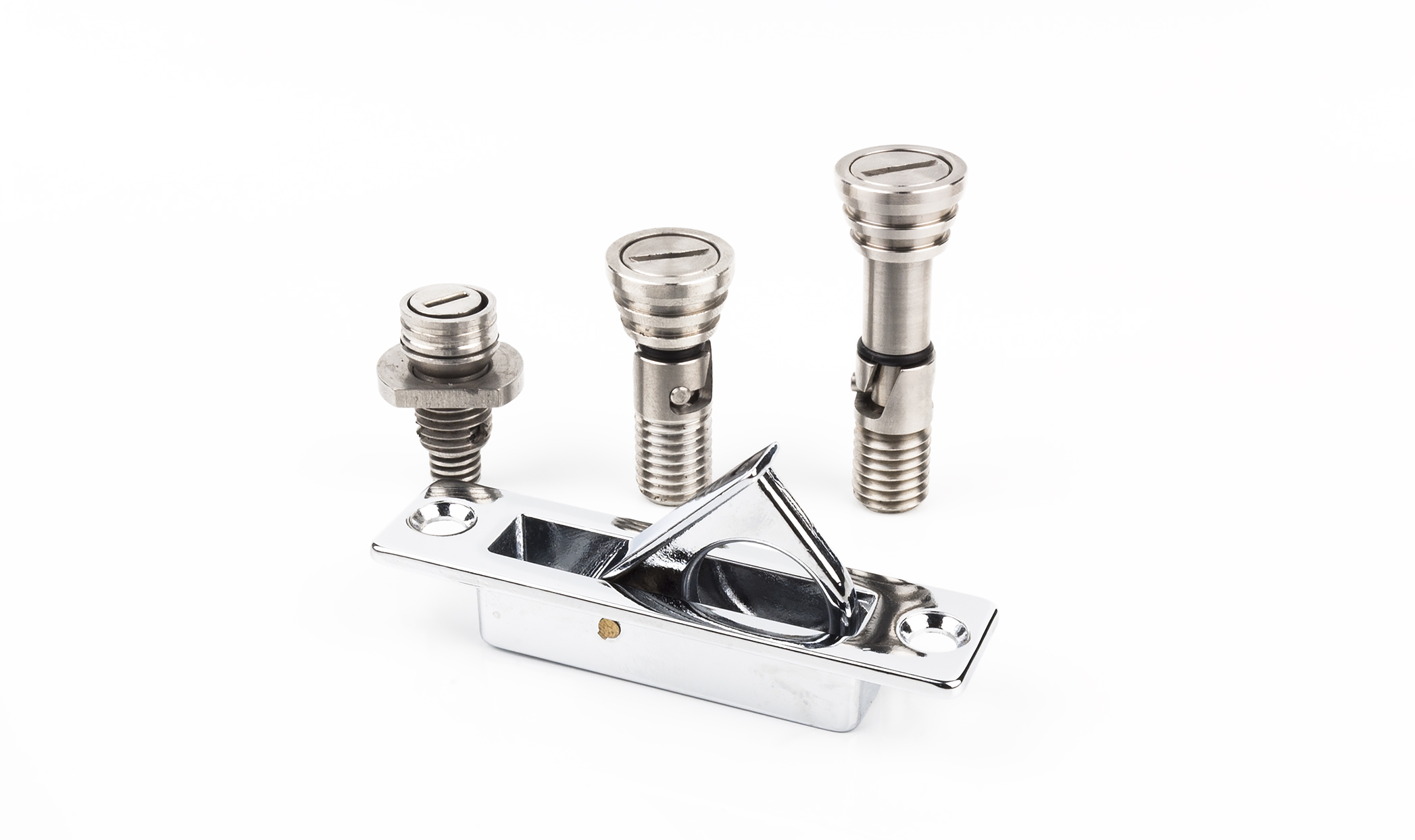

Different Styles & Sizes

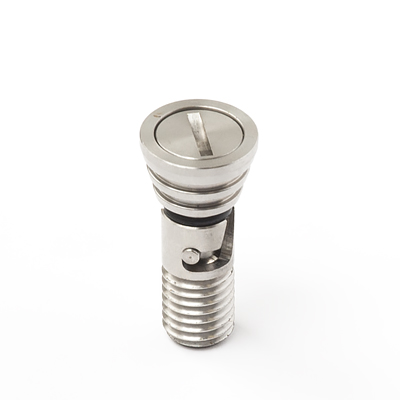

PYI OEM Floor Anchor

OEM Floor Anchors

For 3/8" - 3/4"
(9 - 19mm) Floorboards

Buy

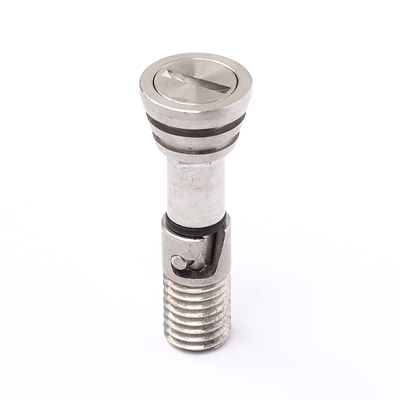

PYI Floor Anchor

Floor Anchors

For 1/2" - 3/4"
(12 - 19mm) Floorboards

Buy
PYI Floor Anchor

Floor Anchors

For 7/8" - 1-1/4"
(22 - 32mm) Floorboards

Buy
PYI Floor Latch

Floor Latch

Floor Latch

Buy

Here are common questions we receive about our Floor Anchors. If you can't find an answer to your question here please feel free to contact us.

PYI has very little inventory of brass anchors available, please call to inquire on current stock.

500 lbs. (1,000 lbs. breaking point)

Since the head of the anchor is slotted you can use a flat head screwdriver. However, we have found that a coin works a little better since it fills the entire slot and makes unlocking the anchor easier.

It is dependent on the weight of what is in the compartment under the floorboard, usually 2-4 anchors per board will be sufficient.


Tips

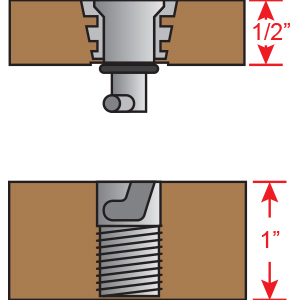

1/2 inch Panel

1/2" Panel

With 1/2" (12mm) panels the receiver will sit flush. A minimum of 1" (25mm) is needed for the sole.

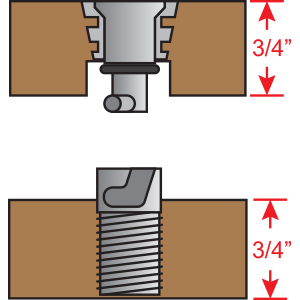

3/4 inch panel

3/4" Panel

With 3/4" (19mm) panels you will have a small portion of the receiver above the sole. A minimum of 3/4" (19mm) is needed for the sole.

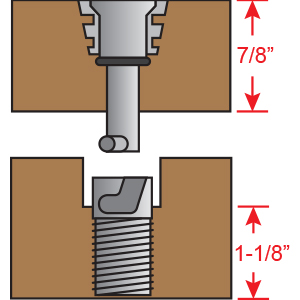

7/8 panel

7/8" Panel

With 7/8" (22mm) panels you will have more of the receiver sitting below the sole, thus the sole will require counter boring. A minimum of 1-1/8" (29mm) is needed for the sole.

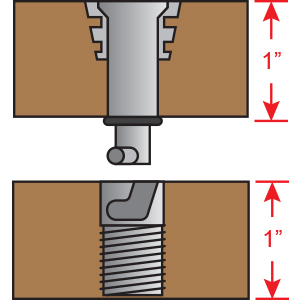

1 inch panel

1" Panel

With 1" (25mm) panels teh receiver will sit flush. A minimum of 1" (25mm) is needed for the sole.

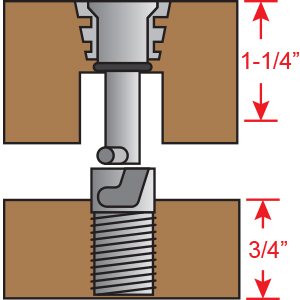

1-1/4 inch panel

1-1/4" Panel

With 1-1/4" (32mm) panels you will have a small portion of the receiver above the sole. A minimum of 3/4" (19mm) is needed for the sole.

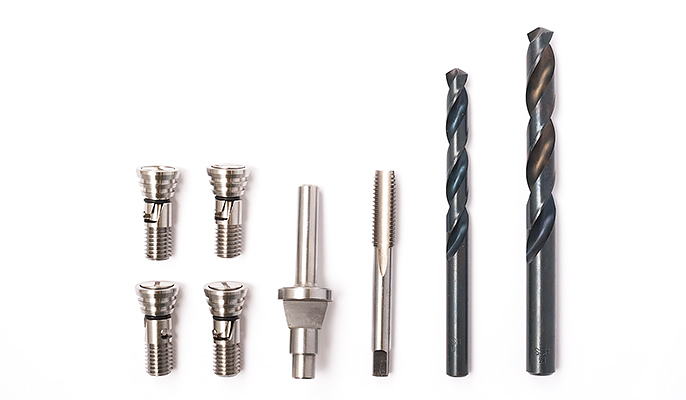

Floor Anchor Starter Kit

PYI Floor Anchors Starter Kit

Get everything you need all at once with a PYI Floor Anchor Starter Kit. This kit comes with four Floor Anchors, a custom countersink “t” cutter, all drill bits and taps required.

Buy Now

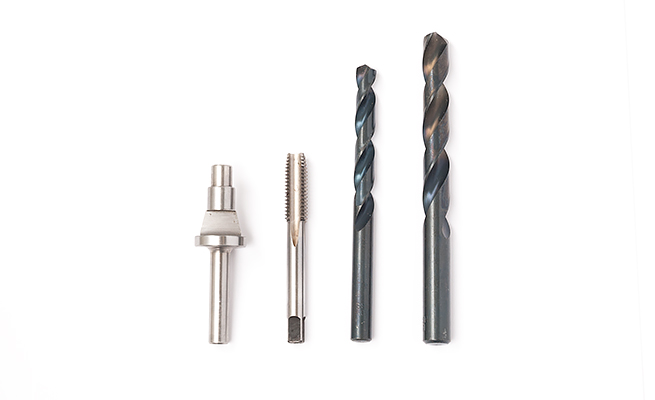

Floor Anchor Installation Kit

PYI Floor Anchors Installation Kit

Need the tools to get your Floor Anchors installed? Pick up the Floor Anchor Installation Kit. This kit includes a custom countersink “t” cutter, all drill bits and taps required.

Buy Now

Floor Anchor Dealer Map

Find the nearest Floor Anchor dealer near you by using the map below!

Need to know more information? Feel free to download our Floor Anchor brochures, installation instructions and price lists. Can't find what you're looking for? Please contact us!
